Cikakken Injin Pelletizing WPC Na atomatik Tare da Iska - Tsarin Taimako na Sanyaya
| Nau'in Filastik: | PP/PE/PVC/POM da dai sauransu + itace fiber | Garanti: | Shekara daya |
|---|---|---|---|
| Injiniyoyin Waje: | Akwai Don Shigarwa Da Gudanarwa | Diamita na Screw: | 71mm ku |
| Kaya & Ganga: | W6Mo5Cr4V2 | Motoci: | 160kw |
| Nau'in Yanke: | Fuska Cooling Die | Iyawa: | 400-500kg/h |
| A'a. | Abubuwan da ke ciki | Naúrar | Yawan | Alamomi |
| 1 | Twin dunƙule extrusion tsarin | saita | 1 | |
| 1.1 | Tsarin ciyarwa | saita | 1 | 1.5kw |
| 1.2 | SJ-75B Twin dunƙule extruder | saita | 1 | 160kw, 40:1 |
| 1.3 | Tsarin keken ruwa | saita | 1 | 0.55kw |
| 2 | Wutar lantarki | saita | 1 | |
| 3 | Tsarin taimako na sanyaya iska | saita | 1 | |
| 3.1 | Mutu kai | saita | 1 | |
| 3.2 | Mai yanke fuska | saita | 1 | 1.5kw |
| 3.3 | Tsarin isar da matakai biyu | saita | 1 | 4kw/sa, 8kw gaba daya |
| 3.4 | Silo samfur | saita | 1 | 4 kw |
| 4 | Takardu | saita | 1 |
Kayan kayan gyara kyauta:
| A'a. | Abubuwan da ke ciki | Naúrar | Yawan | Alamomi |
| 1 | Abubuwan dunƙulewa | saita | ~ 500mm | |
| 2 | Fitarwa da shigar da hatimin mai | yanki | 3 | |
| 3 | Zoben hatimin dakin hatimi | yanki | 1 | |
| 4 | Asbestos safar hannu | nau'i-nau'i | 2 | |
| 5 | Allen key (na ciki) | saita | 1 | guda 5 |
| 6 | Allen key (na waje) | saita | 1 | guda 3 |
| 7 | Flat, direban Cross Screw | yanki | 1 kowanne | 2 guda |
| 8 | Copper Bar ∮32*200 | yanki | 1 | |
| 9 | Zoben hawan murƙushewa | yanki | 2 | |
| 10 | Ruwa | yanki | 30 |

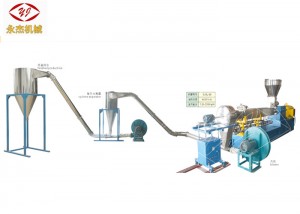

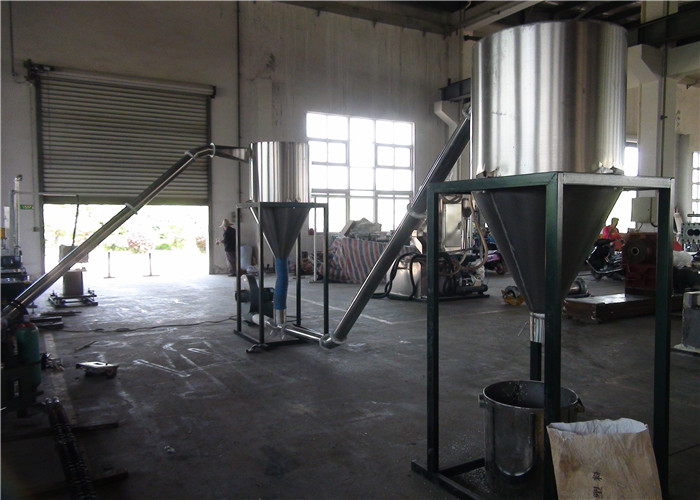

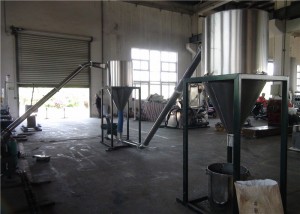

Hoton inji
![Injin Pelletizing WPC Cikakkiyar atomatik Tare da Tsarin Sanyaya Na'ura]("/uploads/20171222161724_38665.jpg<br)

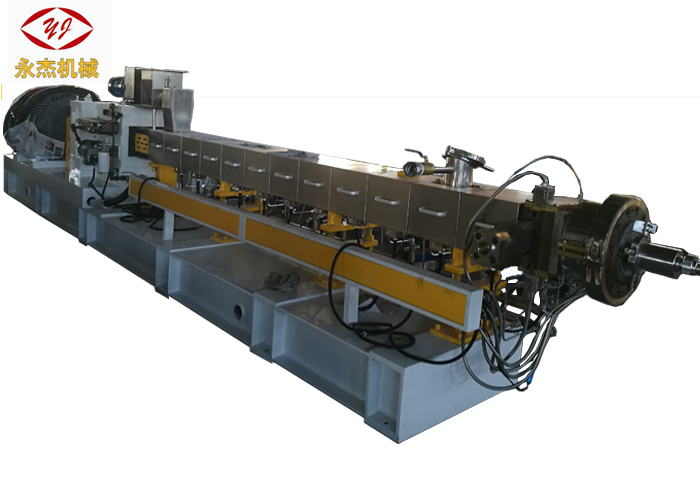

Babban samfuran mu tagwayen dunƙule extruder
| Nau'in samfurin | Jerin | Diamita na Ganga (mm) | Diamita Tsararru (mm) | Rufe L/D | gudun dunƙule n(r/min) | Babban ikon mota (Kw) | Matsakaicin karfin juyi T (Nm) | Ƙididdiga mai ƙarfi (T/A3) | Ƙarfin samarwa na yau da kullun (kg/h) |
| Saukewa: SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| Saukewa: SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| Saukewa: SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| Saukewa: SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| Saukewa: SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
FAQ
1. Shin ku masana'anta ne ko kamfani na kasuwanci?
Duka.
2. Ina ma'aikatar ku take?Ta yaya zan iya ziyarta a can?
Our factory is located in masana'antu Karkasa yankin na Moling garin, Jiangning, Nanjing, China.
(1) Kuna iya tashi zuwa filin jirgin saman Nanjing kai tsaye.Za mu dauke ku a filin jirgin sama na Nanjing Lukou;
(2) Kuna iya tashi zuwa filin jirgin sama na Shanghai Pudong sannan ku zo Nanjing ta hanyar jirgin kasa mai sauri, sannan zamu dauke ku a tashar jirgin kasa.
3. Menene amfanin ku?
(1) Kyakkyawan kula da inganci
(2) Sabis na aji na farko
(3) Kwararrun Fasaha.da tawagar R&D
(4) Lokacin masana'anta da sauri
(5) Farashin gasa sosai
4. Yaya tsawon lokacin bayarwa?
A ƙarƙashin yanayin al'ada, ana isar da samfuran a cikin kwanaki 35.
5. Ta yaya zan iya sanin ƙaƙƙarfan tsari na?
Za mu aiko muku da hotuna da bidiyo na odar ku a satge daban-daban cikin lokaci kuma mu sanar da ku sabbin bayanai.
6. Yaya tsawon garantin?
Za mu iya bayar da garanti na shekara guda don dukan injin.
