Horizontal Twin Screw Plastic Extruder Machine Don Abun Haɗin Filastik ɗin Itace
| Zane-zane: | Twin Screw Extruder | Aikace-aikace: | PE PP PVC WPC Plastic Pellets |
|---|---|---|---|
| Garanti: | Shekara daya | Injiniyoyin Waje: | Akwai Don Shigarwa Da Gudanarwa |
| Diamita na Screw: | 62.4mm | Motoci: | 90 |
| Iyawa: | 200-400kg/h | Material Screw: | W6Mo5Cr4V2 |
PE PP PVC WPC Air Cooling Twin Screw Extruder Machine WPC Extruder
Cikakkun bayanai masu sauri
Power: 90kw zaɓi bisa ga fitarwa da ake buƙata
Diamita na dunƙule: 62.4mm
Kayan dunƙulewa:W6Mo5Cr4V2(6542＃) babban kayan aiki karfe
Ganga diamita: 63mm
Kayan ganga:45ƙirƙira karfe tare da abrasion-resistant gami101 (Ni-Fe-Cr-W)ciki
L/D:36/40/44/45
Fitarwa: 200-450kg / h bisa ga daban-daban abu, dabara da fasaha na tsari da dai sauransu.
Hanyar yankewa: ana amfani da injin pellet mai sanyaya iska don yin amfani da pellet ɗin filastik wpc
Garanti: shekara guda
Lokacin jagora: kwanaki 45 bayan ajiya
Sabis na siyarwa kafin sayarwa
♦1.Taimakon bincike da shawarwari.
♦2.Zaɓar tattalin arziƙi da dacewa masu fitar da injunan da ke da alaƙa ga abokan ciniki.
♦3.Samar da bayanan fasaha na na'ura.
♦4.Samar da hanyoyin gwaji don abokin ciniki.
♦5.Yawon shakatawa na masana'anta & taimako na wasiƙar gayyata lokacin da ake buƙata.
Sabis na tallace-tallace
♦1.Shawarwar yanayin injiniya da ake buƙata don shigarwa.
♦2.Sadarwa akan lokaci matsayin masana'antar inji.
Bayan-tallace-tallace sabis
♦1.Injiniyoyin da ke akwai don injinan sabis a ƙasashen waje a cikin shigarwa, ƙaddamarwa da horo.
♦2.Aiwatar da cikakken bayanin odar abokin ciniki.
♦3.Samar da sabis na kulawa na dogon lokaci da kayan gyara.
♦4.Ba da goyon bayan fasaha ga abokin ciniki don haɓaka sabon samfur.
♦5.Samar da kulawa kyauta na shekara guda.
Iyakar wadata
| A'a. | Abubuwan da ke ciki | Naúrar | Yawan | Alamomi |
| 1 | Mai haɗawa da sauri | saita | 1 | 300L |
| 2 | Na'ura mai juzu'i | saita | 1 | 1.5kw |
| 3 | Twin dunƙule extrusion tsarin | saita | 1 | |
| 3.1 | Tsarin ciyarwa | saita | 1 | 1.5kw |
| 3.2 | SJ-65 Twin dunƙule extruder | saita | 1 | 90kw, 48:1 |
| 3.3 | Tsarin iska mai iska | saita | 1 | 2.2kw |
| 3.4 | Tsarin keken ruwa | saita | 1 | 0.55kw |
| 3.5 | Mai canza allo ta atomatik | saita | 1 | 1.5kw |
| 4 | Wutar lantarki | saita | 1 | |
| 5 | Tsarin taimako na sanyaya iska | saita | 1 | |
| 5.1 | Mutu kai | saita | 1 | |
| 5.2 | Mai yanke fuska | saita | 1 | 1.5kw |
| 5.3 | Tsarin isar da matakai guda ɗaya | saita | 1 | 4 kw |
| 5.4 | Silo samfur | saita | 1 | 4 kw |
| 6 | Takardu | saita | 1 |

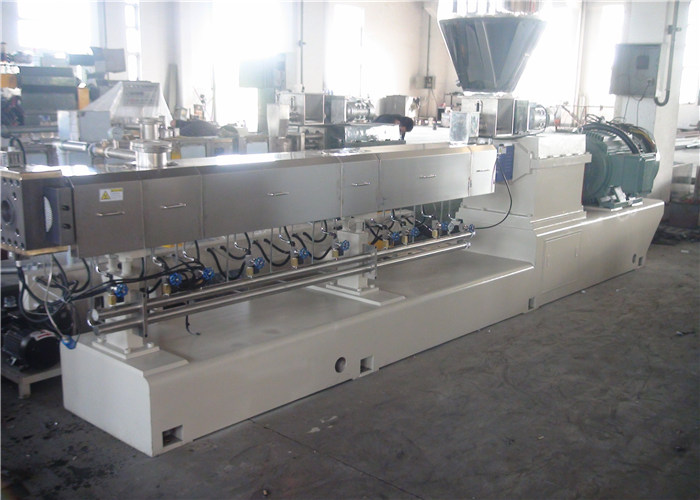

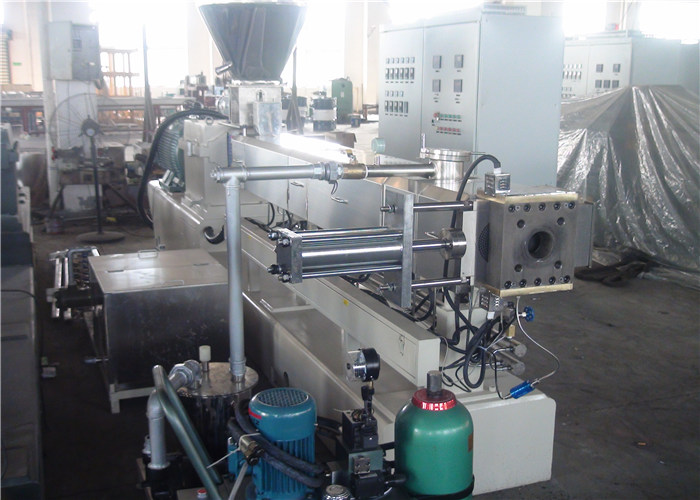

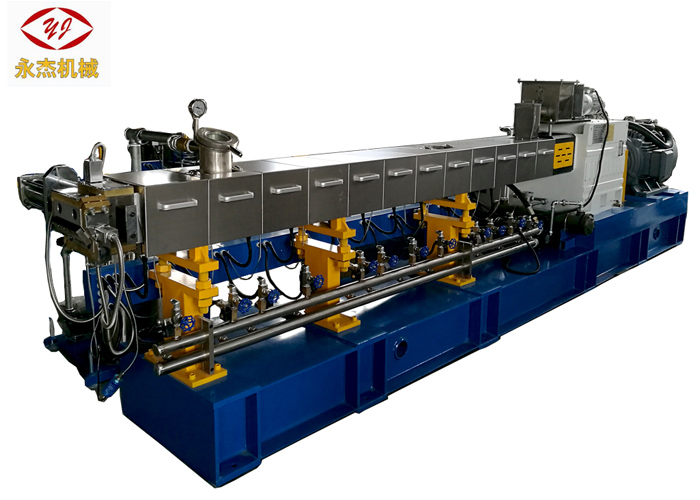

Hoton Katin Filastik Haɗaɗɗen WPC Extruder Air Cooling Plastic Pellet Machine
Babban bayanan fasaha na nau'ikan nau'ikan nau'ikan tagwayen dunƙule extruder pelleitizing inji
| Nau'in samfurin | Jerin | Diamita na Ganga (mm) | Diamita Tsararru (mm) | Rufe L/D | gudun dunƙule n(r/min) | Babban ikon mota (Kw) | Matsakaicin karfin juyi T (Nm) | Ƙididdiga mai ƙarfi (T/A3) | Ƙarfin samarwa na yau da kullun (kg/h) |
| Saukewa: SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| Saukewa: SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| Saukewa: SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| Saukewa: SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| Saukewa: SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Takaitaccen Kamfanin
Nanjing Yongjie Qixin Machinery Equipment Co., LtdKafa a 2001, maida hankali ne akan wani yanki na 20,000 murabba'in mita a kan namu ƙasar, tare da wata-wata fitarwa na inji 20sets.Our factory ne certificated zuwa AZ, ISO9001: 2008. The kamfanin mayar da hankali a kan bincike, ci gaba da kuma samar da "high matakin, m, sosai sophisticated jerin samfurin layi daya co-juya "cordwood" twin dunƙule extruder, guda dunƙule extruder, biyu mataki extruders da kuma na'urorin pelletizing filastik ta atomatik.Mun ba abokan ciniki samfuran farko-farko tare da “ƙarfi mai ƙarfi, haɓakar haɓakawa, adana makamashi da samfuran kare muhalli.The musamman tsara dunƙule tsarin ya samu nasara ga "daya mataki siffata" a kan da yawa irin kayayyakin, da aka yadu amfani a aluminum hada farantin, XPS kumfa farantin, WP farantin, PP, PE takardar masana'antu, da dai sauransu.
AN SANYA KYAU A FARKO, kuma mu factory ne certificated zuwaISO 9001: 2008kumaCE.
