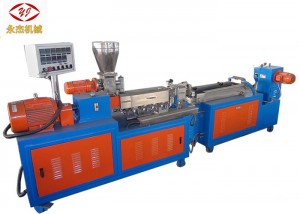

Mesin Pembuat Granules PVC Otomatis, Mesin Extruder PVC Soft 160kw Motor
| Desain Screw: | Twin Screw Extruder | Aplikasi: | Pvc Pelet Kab |
|---|---|---|---|
| Gearbox: | Torsi Dhuwur 600rpm | Bahan Bakul: | 38CrMoAL Anti Korosi |
| Bahan Screw: | 38CrMOALA Anti Korosi | Motor: | 160kw |
| Diameter sekrup: | 71 mm | Output: | 500-600kg / jam |

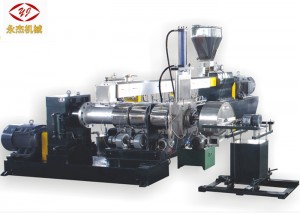

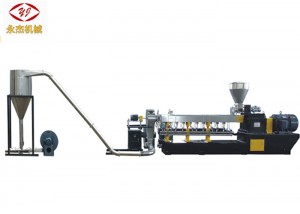

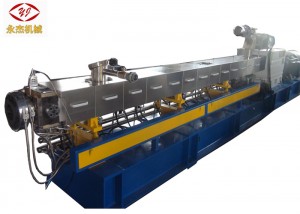

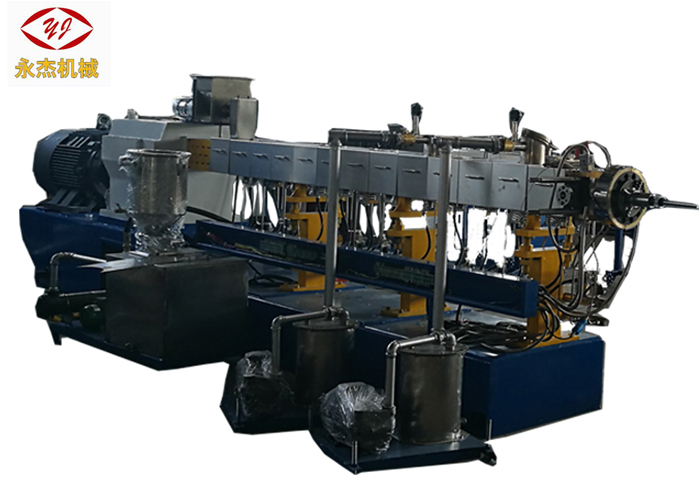

SJSL75C Twin Screw PVC Pelletizer Mesin Extruder PVC Mesin Pelletizing

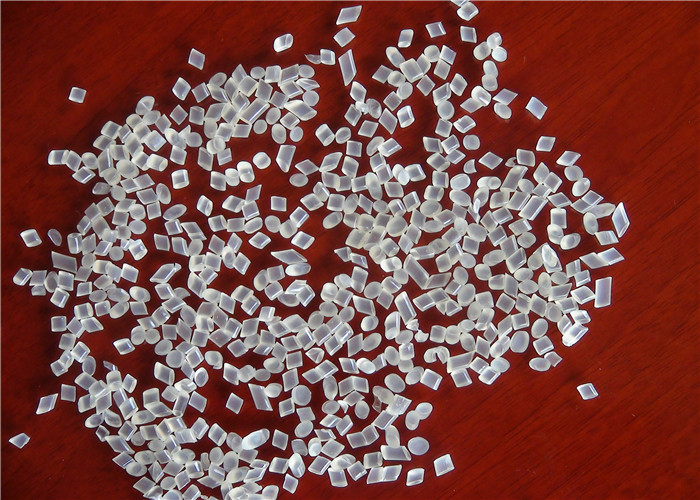

Air Cooling Die Face PVC Pelletizing Machine Aplikasi
Nglakoni modifikasi:PE, EVA etc + Caco3, Talc, Tio2, PVC, PP, Karbon ireng
Batch master sing bisa didegradasi:PE, PS lsp + pati, aditif lsp
Batch master anti-flake:PE, EVA etc + Sb2o3, Mg(OH)2, AI2(OH)3lsp.
Rincian cepet
Daya: 160 kw
Diameter sekrup: 71 mm
Dhiameter barel: 71.8mm
Gearbox: 600 rpm, rasio reduksi: 2.5: 1
Bahan sekrup & laras:38CrMoAl
Output: 500-1000kg / jam

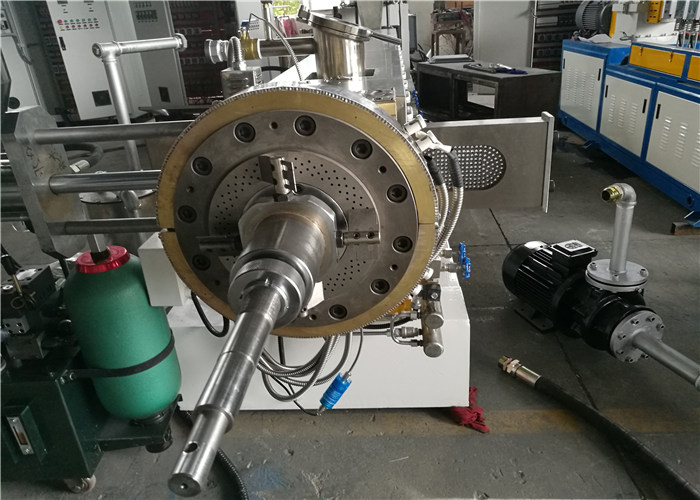

Cutting cara: air cooling die pasuryan kanggo pvc pelet
Garansi: setaun
Lead time: 45 dina sawise simpenan
Zona pemanasan: 9 zona
Inverter merek: ABB
Gear box: torsi dhuwur, input 1480rpm, output 600rpm, rasio reduksi: 2.5: 1
Barel dawa: 290 * 9 = 2610mm
Pemanasan: Nganggo sawetara langkah format pemanasan listrik.Zona pisanan lan kaloro lan zona sirah mesin yaiku pemanas tembaga lan liyane yaiku pemanas aluminium.Total daya panas punika60kwlan max kapasitas panas saben bagean bisa tekan500 ℃.
adhem: Nganggo sistem cooling banyu alus ing tong minyak lan tunyuk banyu cooling cara njaba tong minyak.Pipa sirkulasi digawe saka stainless steel lan katup pengatur aliran banyu yaiku katup tahan karat.
Merk katup elektromagnetik yaikuDANFOSS.
suku cadang gratis:
| Ora. | Isine | Unit | Jumlah | Tandha |
| 1 | Unsur sekrup | nyetel | ~300 mm | |
| 2 | Output lan input segel lenga poros | potongan | 3 | |
| 3 | Venting kamar segel ring | potongan | 1 | |
| 4 | Sarung tangan asbestos | pasangan | 2 | |
| 5 | Kunci Allen (inner) | nyetel | 1 | 5 bêsik |
| 6 | Kunci Allen (njaba) | nyetel | 1 | 3 bêsik |
| 7 | Cross, Flat screw driver | potongan | 1 saben | 2 bêsik |
| 8 | Screw hoisting ring | potongan | 2 | |
| 9 | Blade | potongan | 30 |
![Mesin Pembuat Granules PVC Otomatis, Mesin Extruder PVC Soft 160kw Motor]("/uploads/20171221140627_82450.jpg</p)
Data teknis utama macem-macem model mesin pelleitizing extruder kembar
| Tipe model | Seri | Diameter barel (mm) | Diameter sekrup (mm) | Screw L/D | kacepetan meneng n(r/min) | Daya motor utama (Kw) | Torsi sekrup T (Nm) | Rating torsi (T/A3) | Kapasitas produksi khas (kg/jam) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5,5 kw | 30/30 | ||
| SJSL-36 | A B C D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A B C D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A B C D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A B C D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A B C D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A B C D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Ringkesan Perusahaan
Nanjing Yongjie Qixin Machinery Equipment Co., LtdFounded in 2001, isine area 20.000 kothak meter ing tanah kita dhewe, karo output saben wulan saka mesin 20sets.Pabrik kita wis sertifikat CE, ISO9001: 2008. Perusahaan konsentrasi ing riset, pangembangan lan produksi "tingkat dhuwur, akurat, produk seri Highly canggih paralel co-puteran" cordwood "extruder meneng kembar, extruder meneng siji, extruders rong tahap lan mesin pelletizing plastik otomatis.Kita wis nyedhiyakake pelanggan produk kelas siji kanthi "torsi kuwat, produksi dhuwur, konservasi energi lan produk perlindungan lingkungan.Struktur meneng dirancang khusus wis temen maujud kasil kanggo "siji langkah mbentuk" ing macem-macem produk, lan digunakake digunakake ing piring aluminium komposit, XPS piring foaming, piring WP, PP, industri sheet PE, etc.
