Mesin Pelletizing Plastik Torsi Dhuwur, Mesin Extruder Kembar Diameter 71mm
| Desain Screw: | Twin Screw Extruder | Aplikasi: | PP PE Kanthi Caco3, Talc Etc Filler Masterbatch |
|---|---|---|---|
| Rasio Gearbox: | 2.5:1 | Lead Time: | 45 Dina Sawise simpenan |
| Diameter barel: | 71 mm | Bahan Screw & Barrel: | W6Mo5Cr4V2 |
| Motor: | 160kw | Kapasitas: | 500-800kg / jam |
71mm Diameter Twin Meneng Dhuwur Torsi Water Ring Plastik Mesin Pelletizing
Aplikasi Water Ring Pelletizer:
1. PE, Eva etc + Caco3, Dhiskusi, Tio92, ngisi modifikasi lan karbon ireng etc.
2. LDPE, HDPE, LLDPE, MDPE, drivepipe, bahan isolasi, bahan crosslinking, bahan lapisan kabel, bahan pipa kontraksi termal lsp.
3. Senyawa pipa PPR, bahan tabung crosslinking PE, TPR, elastomer termoplastik TPU, EVA lan adesif leleh panas dll.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA murub retarding masterbatch etc.
6. PE, PP, PS Isi lan masterbatch biodegradable, etc.
Rincian cepet saka sjsl36 water ring pelletizer
Diameter sekrup: 71 mm
Bahan sekrup: W6Mo5Cr4V2
Dhiameter barel: 71.8mm
Bahan laras: W6Mo5Cr4V2
Daya motor: 160 kw
Merk motor: SIEMENS
L/D:48:1
Output: 500-800kg / jam
Rasio pengurangan gearbox: 600rpm
Kondisi kerja(disedhiyakake dening pelanggan)
| Gudang / Bengkel | Ukuran (M*M*M): 20 (Dawa)×3 (Wah)×2.5 (Dhuwur)Crane: Posisi mesin |
| Suhu | ≤40 ℃ |
| Power supply & Instalasi daya | 3 fase,380V, 50Hz |
| Kawat/kabel | Kabel / kabel saka sumber daya kanggo ngontrol kabinet baris produksi iki;Kabeh kabel listrik saka kabinèt kontrol kanggo saben mesin. |
| Selang/pipa banyu adhem | Pasokan banyu kanggo mesin lan blumbang.Nggawe blumbang (4-6m3) ing njaba bengkel, nggunakake pompa banyu kanggo nggawe banyu daur ulang. |
| Bobot | Extruder: ~2.5T, sub-mesin: ~1T |
Bagian utama lan paramèter teknis
| Ora. | Isine | Unit | Jumlah | Tandha |
| 1 | 200L mixer kacepetan dhuwur | nyetel | 1 | |
| 2 | Sistem ekstrusi sekrup kembar | nyetel | 1 | |
| 2.1 | Sistem pakan | nyetel | 1 | 1,5kw |
| 2.2 | SJ-75 Twin meneng extruder | nyetel | 1 | 160kw, 48:1 |
| 2.3 | Sistem ventilasi vakum | nyetel | 1 | 2,2 kw |
| 2.4 | Sistem siklus banyu | nyetel | 1 | 0,55 kw |
| 2.5 | Pangowahan layar otomatis | nyetel | 1 | 1,5kw |
| 3 | Kabinet listrik | nyetel | 1 | |
| 4 | Sistem bantu ring banyu | nyetel | 1 | |
| 4.1 | Kepala die ring banyu | nyetel | 1 | |
| 4.2 | Pemotong rai kanthi rel & tutup panuntun | nyetel | 1 | 1.5KW |
| 4.3 | Dehidrator centrifugal | nyetel | 1 | 4KW |
| 4.4 | Saringan kedher | nyetel | 1 | 0.4KW |
| 4.5 | Tong panyimpenan | nyetel | 1 | |
| 5 | Dokumen | nyetel | 1 |

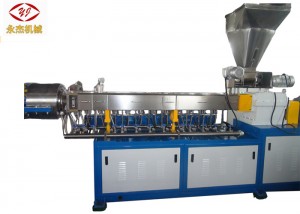

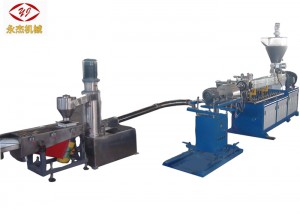

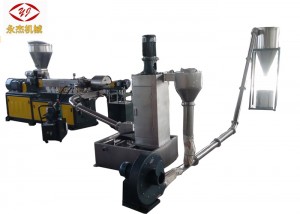

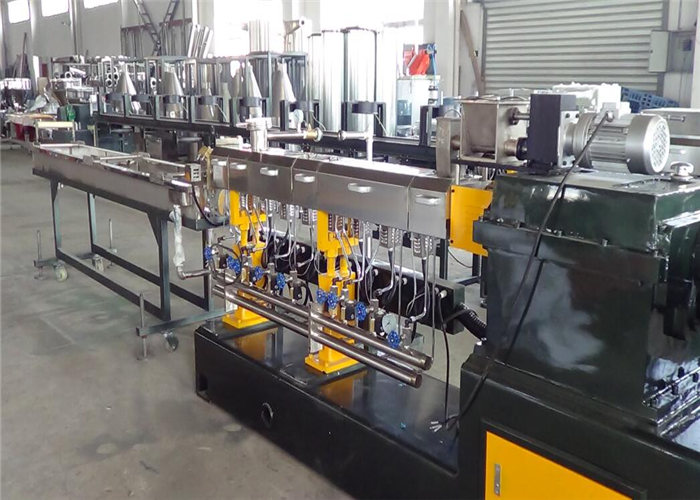

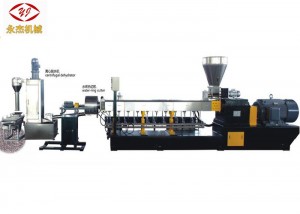

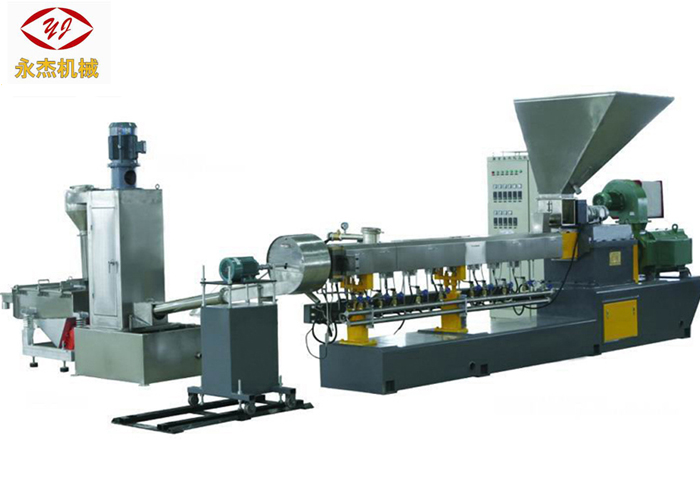

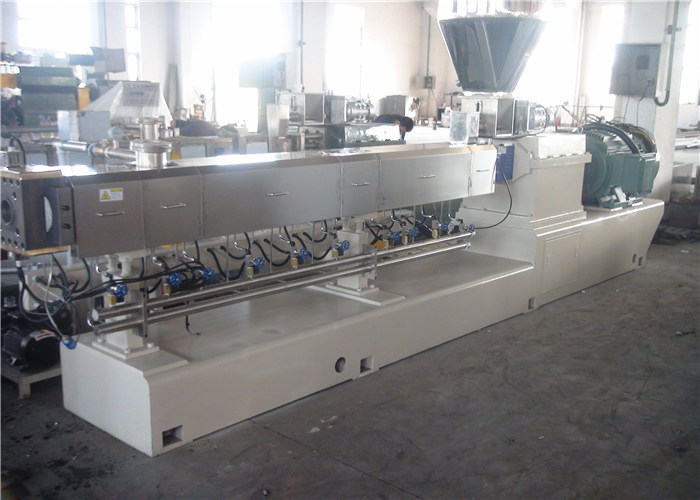

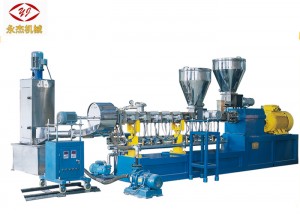

Foto saka mesin
Rincian Teknis Utama saka Various Water Ring Pelletizer Models
| Tipe model | Seri | Diameter barel (mm) | Diameter sekrup (mm) | Screw L/D | kacepetan meneng n(r/min) | Daya motor utama (Kw) | Torsi sekrup T (Nm) | Rating torsi (T/A3) | Kapasitas produksi khas (kg/jam) |
| SJSL-36 | A B C D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A B C D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A B C D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A B C D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A B C D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A B C D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Ringkesan Perusahaan
Nanjing Yongjie Qixin Machinery Equipment Co., LtdFounded in 2001, isine area 20.000 kothak meter ing tanah kita dhewe, karo output saben wulan saka mesin 20sets.Pabrik kita wis sertifikat CE, ISO9001: 2008. Perusahaan konsentrasi ing riset, pangembangan lan produksi "tingkat dhuwur, akurat, produk seri Highly canggih paralel co-puteran" cordwood "extruder meneng kembar, extruder meneng siji, extruders rong tahap lan mesin pelletizing plastik otomatis.Kita wis nyedhiyakake pelanggan produk kelas siji kanthi "torsi kuwat, produksi dhuwur, konservasi energi lan produk perlindungan lingkungan.Struktur meneng dirancang khusus wis temen maujud kasil kanggo "siji langkah mbentuk" ing macem-macem produk, lan digunakake digunakake ing piring aluminium komposit, XPS piring foaming, piring WP, PP, industri sheet PE, etc.
KUALITAS DIPATUHI PISAN , lan pabrik kita wis sertifikat kanggo ISO 9001:2008 lan CE.
