High Torque Plastic Pelletizing Machine , 71mm Diameter Twin Extruder Machine

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: PP PE With Caco3, Talc Etc Filler Masterbatch Gearbox Ratio: 2.5:1 Lead Time: 45 Days After Deposit Barrel Diameter: 71mm Screw & Barrel Material: W6Mo5Cr4V2 Motor: 160kw Capacity: 500-800kg/h 71mm Diameter Twin Screw High Torque Water Ring Plastic Pelletizing Machine   Water Ring Pelletizer Application: 1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc. 2. LDPE, HDPE, ...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: PP PE With Caco3, Talc Etc Filler Masterbatch
Gearbox Ratio: 2.5:1 Lead Time: 45 Days After Deposit
Barrel Diameter: 71mm Screw & Barrel Material: W6Mo5Cr4V2
Motor: 160kw Capacity: 500-800kg/h

71mm Diameter Twin Screw High Torque Water Ring Plastic Pelletizing Machine



Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Quick details of sjsl36 water ring pelletizer

Screw diameter:71mm

Screw material:W6Mo5Cr4V2

Barrel diameter:71.8mm

Barrel material:W6Mo5Cr4V2

Motor power:160kw

Motor brand:SIEMENS

L/D:48:1

Output:500-800kg/h

Gearbox reduction ratio:600rpm



Work condition (provided by customer)

Warehouse/Workshop Dimension (M*M*M): 20 (Length)×3 (width) ×2.5 (Height)Crane: Machine positioning
Temperature ≤40℃
Power supply & Installation power 3-phase, 380V, 50Hz
Wire/cables Wires/cables from power supply to control cabinet of this production line;All electrical cables from control cabinet to each machine.
Cooling Water hose/pipe Water supply to machines and pools. Creating a pool (4-6m3) outside the workshop, using water pump to make recycling water.
Weight Extruder: ~2.5T, sub-machine: ~1T



Main parts and technical parameters

No. Contents Unit Quantity Marks
1 200L high speed mixer set 1
2 Twin screw extrusion system set 1
2.1 Feeding system set 1 1.5kw
2.2 SJ-75 Twin screw extruder set 1 160kw, 48:1
2.3 Vacuum venting system set 1 2.2kw
2.4 Water cycling system set 1 0.55kw
2.5 Automatic screen changer set 1 1.5kw
3 Electric cabinet set 1
4 Water-ring auxiliary system set 1
4.1 Water-ring die head set 1
4.2 Face cutter with guide rail & cover set 1 1.5KW
4.3 Centrifugal dehydrator set 1 4KW
4.4 Vibrating sieve set 1 0.4KW
4.5 Storage bin set 1
5 Documents set 1

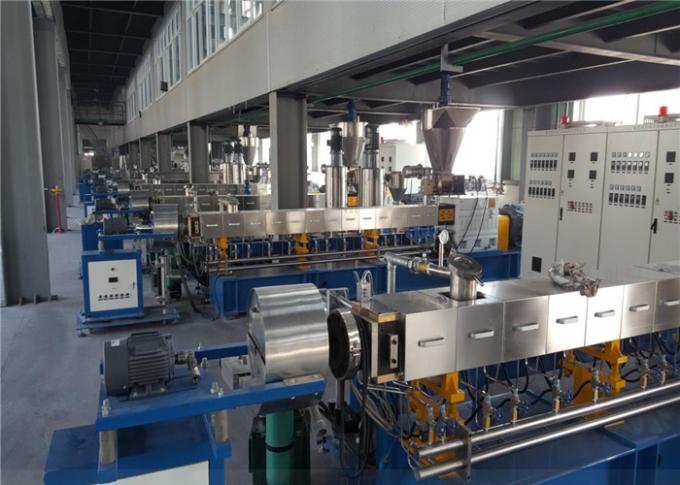

Photos of machine

High Torque Plastic Pelletizing Machine , 71mm Diameter Twin Extruder Machine



Main Technical Details of Various Water Ring Pelletizer Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
