LLDPE TPR Plastic Pelletizing Machine 45#Forged Steel Barrel Water Cooling Type

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: Plastic Pellets Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 62.1mm Motor: 75kw Capacity: 200kg/h L/D: 44:1 Material Of Barrel: 45#forged Steel LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer Plastic Pellet Machine  Water Ring Pelletizer Application: 1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc. 2. LDPE, HDPE, LLDPE,MDPE, driv...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: Plastic Pellets
Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 62.1mm
Motor: 75kw Capacity: 200kg/h
L/D: 44:1 Material Of Barrel: 45#forged Steel

LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer Plastic Pellet Machine

 Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

 Quick details

Power:75kw

Screw material:W6Mo5Cr4V2

Barrel material: 45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth

and abrasion resistant. The hardness is HRC60-64.

L/D:44:1

Output:500-600kg/h according to different material, formula and technology of process etc.

Revolutions: 0-500rpm;

Reduction ratio: i = 3:1

 Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller’s manufacturer, L/C payment are negotiable

 World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

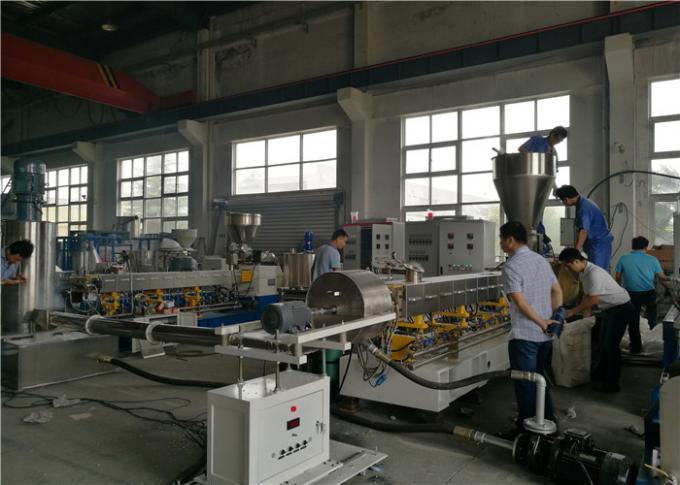

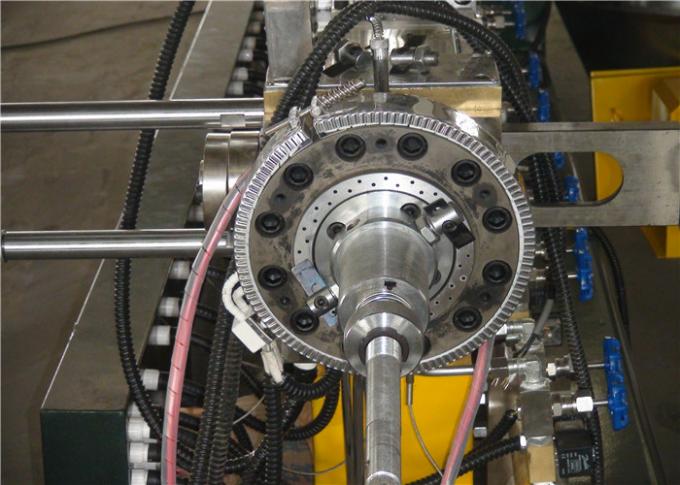

 Photo of LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer Plastic Pellet Machine

LLDPE TPR Plastic Pelletizing Machine 45#Forged Steel Barrel Water Cooling Type



LLDPE TPR Plastic Pelletizing Machine 45#Forged Steel Barrel Water Cooling Type

 Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
