20mm Nitridged Steel Mini Twin Screw Extruder Machine 1000mm Barrel Diameter

Short Description:

Detailed Product Description Pelletizer: 0.75kw Screw Diameter: 21.7mm Nitridge Steel Screw Material: 38CrMoAL Barrel Material: 38CrMoAL Nitridge Steel Barrel Diameter: 22mm Water Bath Length: 1000mm Capacity: 2-15kg/h Dryer: 0.26kw 20mm Nitridged Steel Mini Extruder Twin Screw Extruder Machine Plastic Pellet Machine   Yongjie laboratory mini extruder SJSL20 is widely used among our customers of universities, research center, and factory R&D department for the testing of fo...


Product Detail

Product Tags

Detailed Product Description
Pelletizer: 0.75kw Screw Diameter: 21.7mm Nitridge Steel
Screw Material: 38CrMoAL Barrel Material: 38CrMoAL Nitridge Steel
Barrel Diameter: 22mm Water Bath Length: 1000mm
Capacity: 2-15kg/h Dryer: 0.26kw

20mm Nitridged Steel Mini Extruder Twin Screw Extruder Machine Plastic Pellet Machine

Yongjie laboratory mini extruder SJSL20 is widely used among our customers of universities, research center, and factory R&D department for the testing of formula, compounding etc.

There are two electric control type, PID centralized contrial and SIEMENS PLC touch screen control.

Quick details
Power:5.5kw
Screw diameter:21.7mm
Screw material:38CrMoAL
Barrel diameter:22mm
Barrel material:38CrMoAL
Output:around2-15kg/h

Dryer:0.26kw

Pelletizer:0.75kw
Cutting way: water strand, air cooling strand also available
Warranty:one year
Lead time:45 days after deposit
Heating power:16kw
Heating zones: 7zones
Barrel length:120*7=840mm
Control type:PID or PLC
20mm Nitridged Steel Mini Twin Screw Extruder Machine 1000mm Barrel Diameter
Gear box
Transmission gear: Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo). It had been treated by cementation heat process, the precision grade can reach6th. It guarantees the tooth surface is high speed, overloading, low noise and high torque.
Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

Screw
Diameter:21.7mm
L/D:40:1
Direction of rotation: Co-rotating
Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

Barrel
1). Structure: The first section works for main feeding, and the sixth section is set up for vacuum venting, the others are blocked.
2). Material: The material of the barrel 38CrMoAlA, surface hardness: HV950-1050, depth 0.5-0.7mm 3). Heating: Adopt multiple step format electric heating. All zones are cast copper heater. The total heating power is 16KW and the max heating capacity every section can reach
500℃.
4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
5). Length: 120*7=840mm

 Scope of supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 0.25kw
1.2 SJ-20 Twin screw extruder set 1 5.5kw, 40:1
1.3 Vacuum venting system set 1 0.75kw
1.4 Water cycling system set 1 0.55kw
1.5 Manual screen changer set 1
2 Electric cabinet set 1
3 Water stand auxiliary system set 1
3.1 Die head set 1
3.2 Water trough set 1 1 M
3.3 Dryer set 1 0.26KW
3.4 Pelletizer set 1 0.75KW
4 Documents set 1

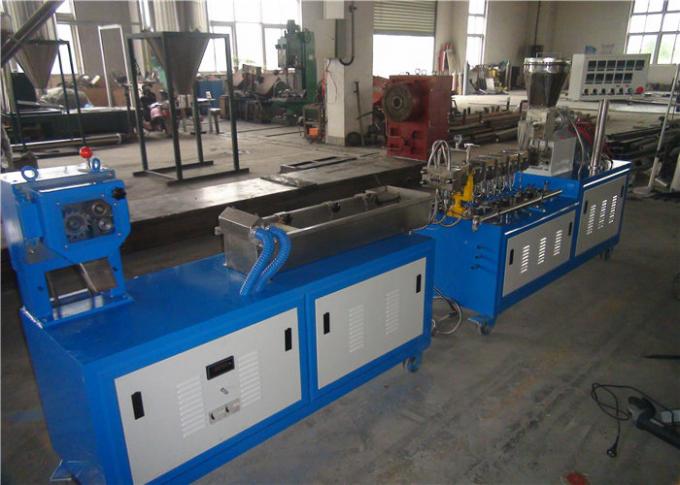

Photo of Laboratory Mini Extruder
20mm Nitridged Steel Mini Twin Screw Extruder Machine 1000mm Barrel Diameter

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500
