China 2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw factory and manufacturers

2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Plastic Type: Pet Puffed Food Protein Warranty: One Year Screw Diameter: 71mm Screw & Barrel Material: W6Mo5Cr4V2 Motor: 315kw Cutting Type: Air Cooling Die Face Capacity: 2000-2500kg/h 2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw Quick details Power:250/280/315kw option according to required output Motor: AC motor, Siemens Beide Screw diameter:71mm B...

Send email to us Download as PDF

Product Detail

Product Tags

Detailed Product Description

Screw Design:	Twin Screw Extruder	Plastic Type:	Pet Puffed Food Protein
Warranty:	One Year	Screw Diameter:	71mm
Screw & Barrel Material:	W6Mo5Cr4V2	Motor:	315kw
Cutting Type:	Air Cooling Die Face	Capacity:	2000-2500kg/h

2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw

Quick details

Power:250/280/315kw option according to required output

Motor: AC motor, Siemens Beide

Screw diameter:71mm

Barrel diameter: 71.8mm

L/D:48/52

Output:2000-2500kg/h according to different material, formula and technology of process etc.

Cutting way: our water ring & air cooling plastic pelletizing machine are widely used for PE PP filler masterbatch

Warranty:one year

Lead time:45 days after deposit

SJSL75D Water ring pelletizer system

1 Die head

Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.

2 Cutter with cover

1).Electromagnetic frequency control speed;

2). Motor power: 2.2kw.

3 Centrifugal dehydrator

1). Stainless steel main body, 15kw motor power.

4 Vibrating sieve

1).One sets of stainless steel vibrator sieve with two motors 0.375kw/set, 0.75kw in total, 3M long.

5 Product silo

1).It consists of stainless steel cyclone separator with brackets, 7.5KW fan, T-joint and sending pipes

(2).Silo capacity:1.5tons

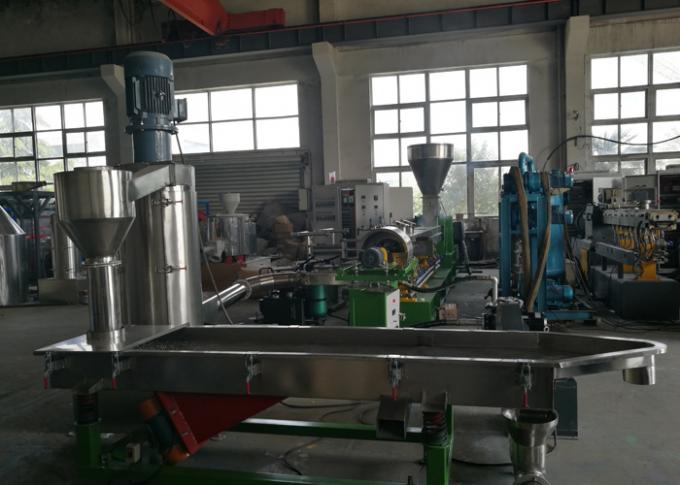

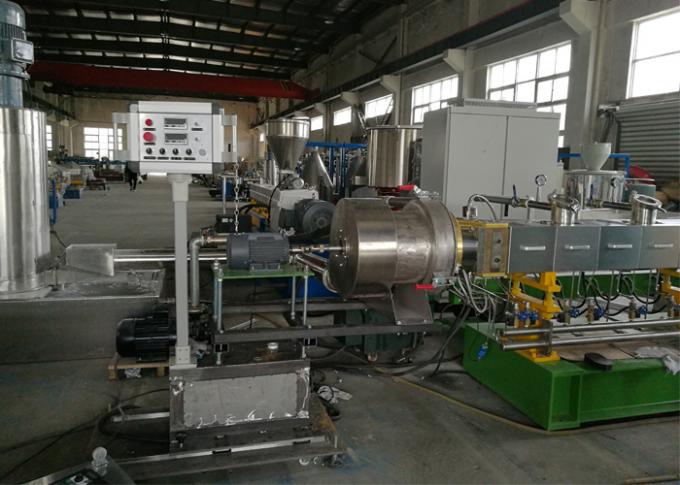

Photo of 2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw (more models are available)

2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw

Main technical data of various model of extruder twin screw pelleitizing machine

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

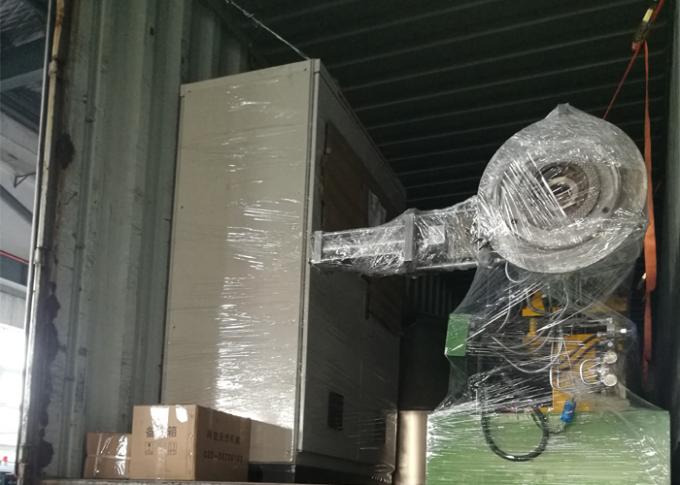

Package of our plastic pellet machine ( sea worthy film or wooden box according to requirements)

2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring Pelletizing Machine 800rpm Extruder Twin Screw
