Fully Automatic PET Recycling Machine , High Output 300kg PET Pelletizer

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Plastic Type: White, Blue White, Green Pet Flake Output: 300kg Flake Requirements: Less Than 20mm, Moisture <0.5% Barrel Diameter: 71.8mm Screw Diameter: 71mm Screw Material: W6Mo5Cr4V2 Barrel Section: 9 Sections SJSL75A 300kg/h pet recycling machine twin screw extruder PET Pelletizing Machine  Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Plastic Type: White, Blue White, Green Pet Flake
Output: 300kg Flake Requirements: Less Than 20mm, Moisture <0.5%
Barrel Diameter: 71.8mm Screw Diameter: 71mm
Screw Material: W6Mo5Cr4V2 Barrel Section: 9 Sections

SJSL75A 300kg/h pet recycling machine twin screw extruder PET Pelletizing Machine

 Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

 Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :P P, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.

 Quick details of the machine

Screw diameter:71mm

Barrel diameter:71.8mm

Power:132kw

Barrel&screw material:W6Mo5Cr4V2 high speed tool steel

L/D:36:1

Length of barrel:290*9 section=2610mm

Gearbox:0-300rpm

Output of machine:400kg/h

Applicable for pet flake less than 15mm, moisture less than 1%

Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.

 Scope of supply:

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.5kw
1.2 Side feeder set 1 for pigment
1.3 SJ-75Twin screw extruder set 1 110kw, 36:1
1.4 Vacuum venting system set 1 7.5kw, two ports
1.5 Water cycling system set 1 0.55kw
1.6 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-strand auxiliary system set 1
3.1 Die head set 1
3.2 Water trough set 1 4M
3.3 Dryer set 1 2.2kw
3.4 Pelletizer set 1 500kg/h, 5.5kw
4 Documents set 1

 Word famous brand of electric components

1). PID centralized control, RKC meter, intelligent type, double channel

2). Extruder inverter is Japanese ABB

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5. The main motor is SISMENS BEIDE;

6. The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve adopt Denmark DANFOSS product.

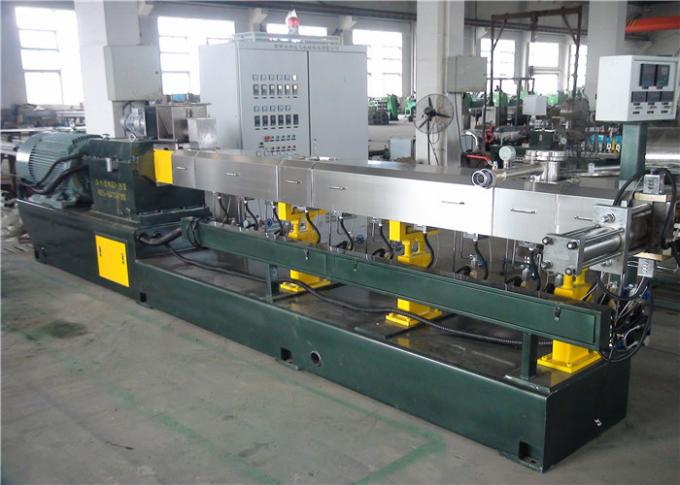

 Photo of SJSL75A 300kg/h pet recycling extruder PET Pelletizing Machine

Fully Automatic PET Recycling Machine , High Output 300kg PET Pelletizer



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
