PE PP ABS Polymer Extruder Machine , 75kw Master Batch Making Machine

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: PLA PE PP ABS EVA PBT POM PS Etc Warranty: One Year Gearbox Reduction Ratio: 3:1 Barrel Diameter: 71.8mm Motor: 90kw Capacity: 200-350kg/h Water Tank: 4000mm 75kw PE PP ABS Polymer Extruder Plastic Pelletizing Machine Filler masterbatch Machine  Water strand plastic pelletizing machine application Reinforcement and modification: filling glass fiber or carbon fiber for P, PA, PBT, ABS, AS, POM, PPS, PET...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: PLA PE PP ABS EVA PBT POM PS Etc
Warranty: One Year Gearbox Reduction Ratio: 3:1
Barrel Diameter: 71.8mm Motor: 90kw
Capacity: 200-350kg/h Water Tank: 4000mm

75kw PE PP ABS Polymer Extruder Plastic Pelletizing Machine Filler masterbatch Machine

 Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :P P, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.

 Quick details

Power:75kw

L/D:40:1

Screw speed:0-600rpm, speed ratio:3:1

Screw diameter:¢62.4mm

Direction of rotation: Co-rotating

Screw&elements: W6Mo5Cr4V2(6542) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.

Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

Barrel diameter: ¢63mm

2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the Ninth section is set up for vacuum venting and others are blocked.

3). Material: The material of the barrel is made of 38CrMoAl nitriding steel.

4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 60kw and the max heating capacity every section can reach 500℃.

5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.

The brand of electromagnetic valve is DANFOSS.

6) Length:290*10=2900mm

 Scope of Supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.1kw+1.5kw
1.2 SJ-65Twin screw extruder set 1 75kw, 40:1
1.3 Vacuum venting system set 2 2.2kw
1.4 Water cycling system set 1 0.55kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-strand auxiliary system set 1
3.1 Die head set 1
3.2 Water trough set 1 4M
3.3 Dryer set 2 2.2kw
3.4 Pelletizer set 1 300kg/h, 4kw
3.5 Product silo set 1
4 Documents set 1

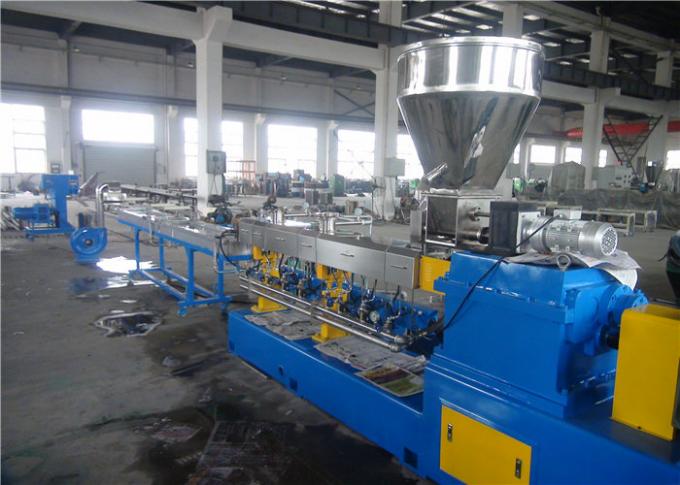

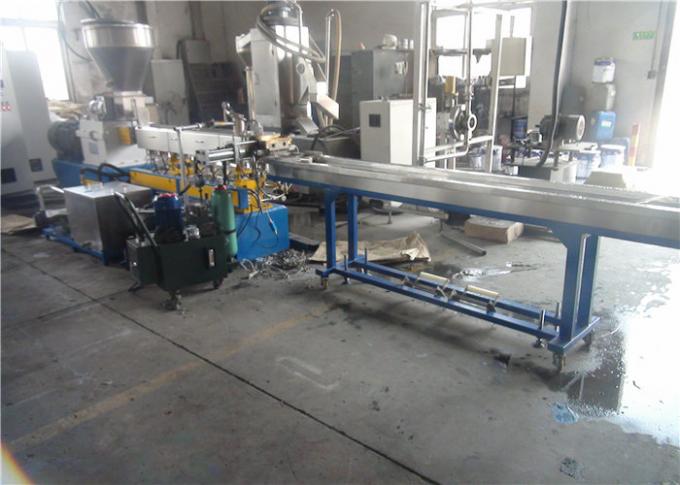

 Photos of Water Strand Plastic Pelletizing Machine

PE PP ABS Polymer Extruder Machine , 75kw Master Batch Making Machine



PE PP ABS Polymer Extruder Machine , 75kw Master Batch Making Machine

 Free spare parts:

No. Contents Unit Quantity Marks
1 Screw elements set ~300mm
2 Output and input shaft oil seals piece 3
3 Venting room seal ring piece 1
4 Asbestos gloves pairs 2
5 Allen key (inner) set 1 5 pieces
6 Allen key (outer) set 1 3 pieces
7 Cross, Flat screw driver piece 1 each 2 pieces
8 Screw hoisting ring piece 2

 Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
