PLA Biodegradable Pellets Plastic Extrusion Machine Air Cooling Die Face Cutting Way

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: PLA Biodegradable Pellets Warranty: One Year Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 62.4mm Motor: 75*90/110/132kw Capacity: 100-300kg/h Material: Corn Startch+PLA/PP+additives PLA Biodegradable Plastic Pellet Machine Air Cooling Plastic Extrusion Machine  Quick details Power:75/90/110/132kw option according to required output Screw diameter:62.4mm Screw material:...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: PLA Biodegradable Pellets
Warranty: One Year Overseas Engineers: Available For Installation And Comissioning
Screw Diameter: 62.4mm Motor: 75*90/110/132kw
Capacity: 100-300kg/h Material: Corn Startch+PLA/PP+additives

PLA Biodegradable Plastic Pellet Machine Air Cooling Plastic Extrusion Machine

 Quick details

Power:75/90/110/132kw option according to required output

Screw diameter:62.4mm

Screw material: W6Mo5Cr4V2 (6542#) high speed tool steel

Barrel diameter: 63mm

Barrel material:45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside

L/D:48:1

Output:200kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling die face plastic pellet machine is used for wpc plastic pellet

Warranty:one year

Lead time:45 days after deposit

 Main parameter of machine parts

No. Contents Unit Quantity Marks
1 High speed mixer set 1 200L
2 Screw loader machine set 1 1.5kw
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 1.5kw
3.2 SJ-65 Twin screw extruder set 1 75kw, 48:1
3.3 Vacuum venting system set 1 2.2kw
3.4 Water cycling system set 1 0.55kw
3.5 Automatic screen changer set 1 1.5kw
4 Electric cabinet set 1 PID
5 Air-cooling auxiliary system set 1
5.1 Die head set 1
5.2 Face cutter set 1 1.5kw
5.3 two-stage conveying system set 1 4kw+4kw
5.4 Product silo set 1 4kw
6 Documents set 1

 World famous brand of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is Japanese joint venture ABB

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve adopt Denmark DANFOSS product.

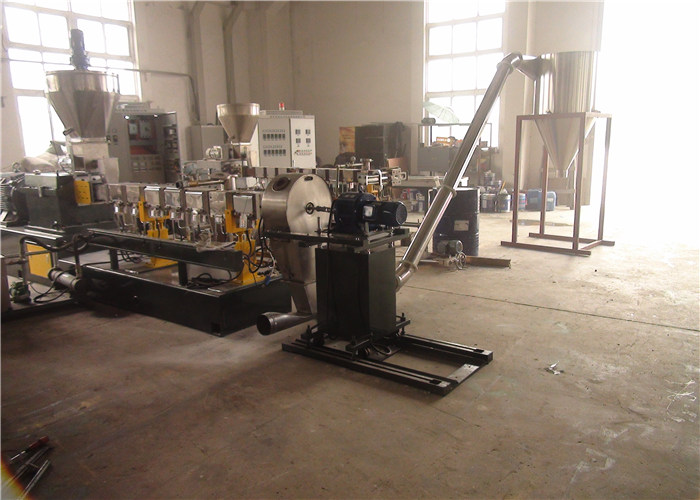

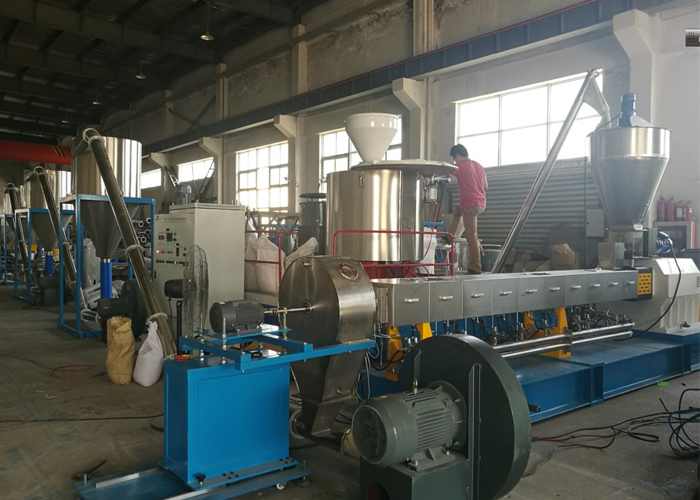

 Photo of Air Cooling Plastic Extrusion Machine

700500-1

-twin screw air-cooling hot-face pelletizing line (5)

 Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.

 How to choose machine for plastic pellet?

1. Just tell us your rough formula, like 50% PE +50% wood fiber + additives etc.

2. Your expected output per hour of the mahcine

 Package of machine

1. Sea worthy of film or bubble film

2. Wooden box or frame according to customer’s requirements
