Recycling Plastic Flake Single Screw Extruder Machine Water Cooling Strand Cutting

Short Description:

Detailed Product Description Screw Design: Single Screw Extruder Plastic Type: Plastic Recyclign Material Granules Warranty: One Year Screw Diameter: 120mm Screw & Barrel Material: 38CrMoAlA Motor: 55kw Cutting Type: Water Cooling Strand Capacity: 100-150kg/h YD120 Recycling Plastic Flake Single Screw Extruder Machine Plastic Granulator Machine  Characteristic of single screw extruder 1.High precision gear box with ability of over loading, smooth transmitting, lower noise ...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Single Screw Extruder Plastic Type: Plastic Recyclign Material Granules
Warranty: One Year Screw Diameter: 120mm
Screw & Barrel Material: 38CrMoAlA Motor: 55kw
Cutting Type: Water Cooling Strand Capacity: 100-150kg/h

YD120 Recycling Plastic Flake Single Screw Extruder Machine Plastic Granulator Machine

 Characteristic of single screw extruder

1.High precision gear box with ability of over loading, smooth transmitting, lower noise

2.Newly designed barrel and screw to ensure well-distributed of material in melting, low melt temperature and high production

3.The screw is made with standard and high precision during process. After treated by gases and nitride the barrel, it possesses strong wear- and corrosion- resisting. For special material, double metals are available for barrel etc.

4.The barrels cooled by lower with super mute working status, less maintenance

5.PID temperature is controlled by Japan temperature control meter with stable and accurate temperature.

6.Two type of die head design: manual and hydraulic type for easy changing and time saving.

7.ABB or other famous brand Inverter speed control for more stable and good performance of machine and easier operation

 Quick details of YD120

  1. The machine L/D=33:1
  2. Screw diameter: ¢120mm;
  3. Screw material:38CrMoALA,

d. Barrel material: 38CrMoALA;

  1. Central height of the screw:900 mm;
  2. Length of the barrel: 3960mm
  3. Heat-resistant capacity of heat sensor in main machine:0-500℃
  4. Main motor power: 55kw;
  5. Main machine rotating speed: 17-84 rpm;
  6. Heating power: 40KW;
  7. The output : around 100-150kg/h, (It can be changed according to different materials and technique)

Scope of supply

No. Contents Unit Quantity Marks
1 Single screw extrusion system set 1
1.1 Feeding system set 1
1.2 YD-120 single screw extruder set 1 55KW 33:1
1.3 Automatic screen changer set 1
2 Electric cabinet set 1
3 Water-ring assembly system set 1
3.1 Die head set 1
3.2 Face cutter with guide rail set 1
3.3 Centrifugal dehydrator set 1
3.4 Vibrating sieve set 1
3.5 Product silo set 1
4 Spare parts set 1
5 Documents set 1

 Model of our single screw extruder

Model type Screw Diameter (mm) Screw L/D Main motor power(Kw) screw speed n(r/min) Typical production capacity (kg/h)
YD-30 30 25-33 4/5.5 3-100 2-15
YD-45 45 20-32 5.5/7.5 5-84 5-40
YD-60 60 20-32 17.5/22 5-84 15-80
YD-90 90 20-33 30/37 5-84 25-120
YD-100 100 20-33 37/45 5-84 45-150
YD-120 120 20-33 45/55 5-84 75-200
YD-150 150 20-33 75/90 5-84 150-300
YD-180 180 20-33 90/132 5-84 200-400
YD-200 200 20-33 110/160 5-84 250-500

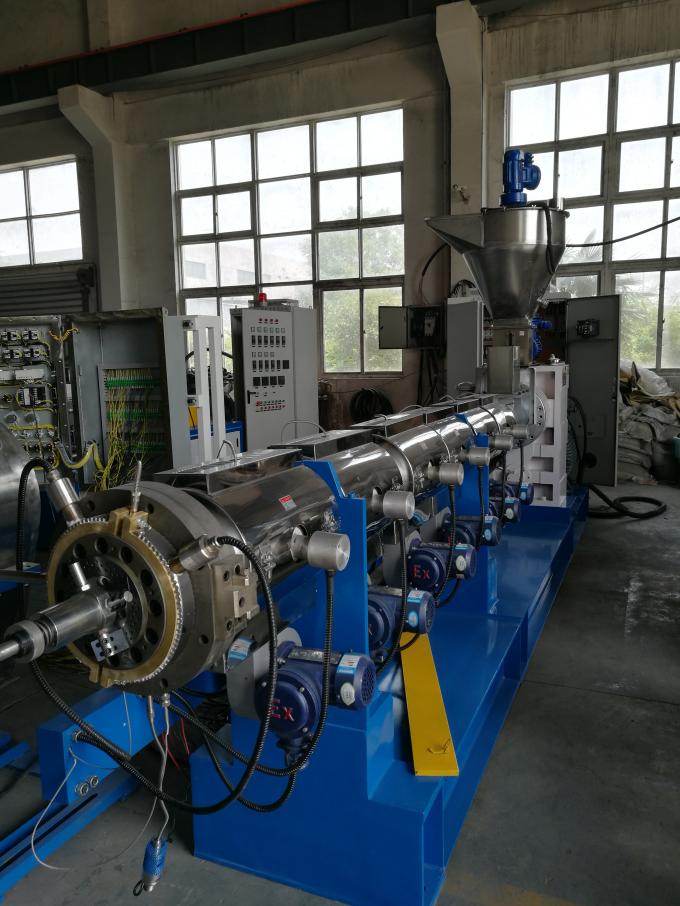

 Photo of machine

Recycling Plastic Flake Single Screw Extruder Machine Water Cooling Strand Cutting

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
