30-50kg/H PP + TIO2 Twin Screw Extrusion Machine In The Water Cutting Type

Short Description:

Detailed Product Description Plastic Type: TPE/TPU/TPR/EVA/PP Etc Warranty: One Year Screw Diameter: 35.6mm Screw & Barrel Material: W6Mo5Cr4V2 Motor: 18.5kw Cutting Type: In The Water Cutting Capacity: 30-50kg/h Barrel Diameter: 36mm SJSL36 30-50kg/h PP+TIO2 Twin Screw Extruder Machine Plastic Pelletizing Machine  Nanjing Yongjie underwater plastic pellet machine is the special and innovative technique for the production of hgih-quality plastics pellets, which have low vi...


Product Detail

Product Tags

Detailed Product Description
Plastic Type: TPE/TPU/TPR/EVA/PP Etc Warranty: One Year
Screw Diameter: 35.6mm Screw & Barrel Material: W6Mo5Cr4V2
Motor: 18.5kw Cutting Type: In The Water Cutting
Capacity: 30-50kg/h Barrel Diameter: 36mm

SJSL36 30-50kg/h PP+TIO2 Twin Screw Extruder Machine Plastic Pelletizing Machine

 Nanjing Yongjie underwater plastic pellet machine is the special and innovative technique for the production of
hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.
Typical Application:1. Polyolefine:LLDPE, LDPE, HDPE, PP, EPDM…2. Styrolpolymere:PS, ABS… 3. Acrylharze:PMMA…4. Polyacetale:POM…5. Polycarbonate:PC,PET,PBT, PE…
6. Polyamide:PA6,PA6.6,PA11,PA12…7. Thermoplastics Elastomer:TPE,TPV,TPR,TPEE…8. Hot melt adhesives: TPU, EVA, PA, PP

Quick details
Power:18.5kw
Screw material:W6Mo5Cr4V2
Barrel material: 45#forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:44:1
Output:30-50kg/h according to different material, formula and technology of process etc.
Revolutions: 0-600rpm;
Reduction ratio: i = 2.5:1

Scope of supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 0.75kw
1.2 SJ-36 Twin screw extruder set 1 18.5kw, 44:1
1.3 Vacuum venting system set 1 0.75kw
1.4 Water cycling system set 1 0.55kw
1.5 Manual screen changer set 1 0.75kw
2 Electric cabinet set 1
3 Underwater pelletizing auxiliary machine system set 1
3.1 Dump valve system set 1
3.2 Cutting head set 1
3.3 Cutting knife system set 1
3.4 Pneumatic valve set 1
3.5 Dehydrator set 1
3.6 Electric cabinet set 1
3.7 vibrator set 1
3.8 One stage blowing transmitting system set 1
4 Documents set 1


Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller’s manufacturer, L/C payment are negotiable

World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

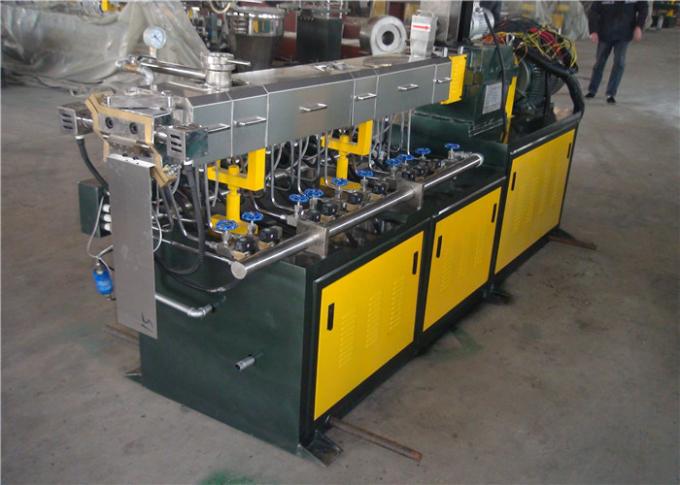

30-50kg/H PP + TIO2 Twin Screw Extrusion Machine In The Water Cutting Type

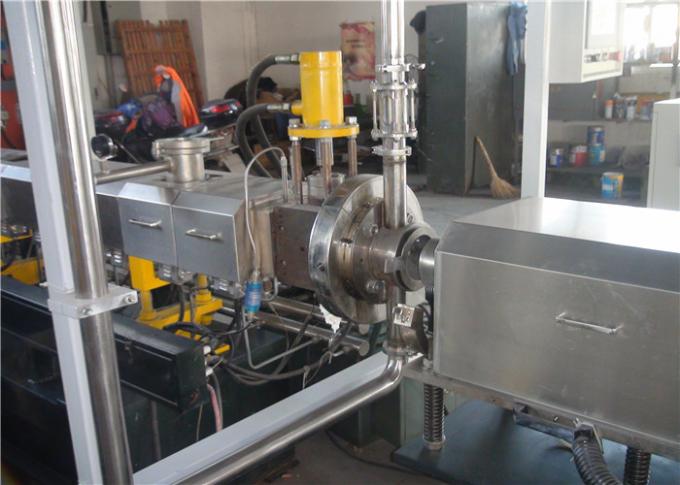

30-50kg/H PP + TIO2 Twin Screw Extrusion Machine In The Water Cutting Type

Main Techincal Parameter of Various Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500
