High Efficiency Two Stage Extruder Machine For PVC Cable 71mm/180mm Screw Diameter

Short Description:

Detailed Product Description Application: Plastic Pellets Warranty: One Year Screw Diameter: 71mm/180mm Screw & Barrel Material: W6Mo5Cr4V2/38CrMoAlA Motor: 132/90kw Cutting Type: Water Ring/air Coolinghot Cutting Capacity: 500kg/h Color: Any Color Can Be Customzied PVC Carbon Black Two Stage Extruder Twin Screw Single Screw Plastic Pelletizing Machine  Two Stage Extruder ZL series, that’s two stage compounding extruder consisted of two parts. Mainly there are three types ...


Product Detail

Product Tags

Detailed Product Description
Application: Plastic Pellets Warranty: One Year
Screw Diameter: 71mm/180mm Screw & Barrel Material: W6Mo5Cr4V2/38CrMoAlA
Motor: 132/90kw Cutting Type: Water Ring/air Coolinghot Cutting
Capacity: 500kg/h Color: Any Color Can Be Customzied

PVC Carbon Black Two Stage Extruder Twin Screw Single Screw Plastic Pelletizing Machine

 Two Stage Extruder

ZL series, that’s two stage compounding extruder consisted of two parts. Mainly there are three types of two stage extruder combination:

1.Single screw main extruder machine-single screw submachine

2.Single screw main pelletizing machine-twin screw submachine

3.Twin screw main pelletizing machine-single screw submachine

The first two types are widely used for recycled plastic granulating.

 And the third type for heat-sensitive material like PVC, POM, XLPE etc.

The twin screw extruder (SJSL-) at the first stage is to realize good shearing and compounding for material, and then the extrusion and pelletizing by YD single screw extruder (second stage). The new, scientific and advanced design and structure can avoid material decomposition caused by material overheating

 Application of Twin-Single Screw Extruder

 Carbon black master batch

PVC cable, PVC transparent bottle and blood transfusion tube materials

PE silicon hydride crosslink cable material, peroxide crosslink cable material

Wood- plastic blending material

Heat-sensitive polymeride.

 Technical requirements:

Dynamic data: low voltage power supply standard(DIN/IEC38): 380v

-5+10%, 50Hz-/+2% phase/N/PE 50Hz.

control voltage standard (transformed): 220V

AC( contactor, meter, electromagnetic valve ).

Temperature: 10-40℃.

Humidity: max.80%, no condensation.

Total wattage:~300 KW.

Water requirements: circulating water: The cooling recycling water in the barrel must

be soft water (distilled water).

Water sources: 1. Creating a pool (4-6㎥) outside the

workshop, using water pump to makerecycling water.

2. Using tap water directly, but it’s wasteful.

Weight :Extruder:~8T

     Auxiliary system:~2T

Model type Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Typical production capacity (kg/h)
ZL51-100 SJSL51 50.5 20-48 500-600 37/45 150-300
YD100 100 7-15 65-85 37
ZL60-120 SJSL60 59.5 20-44 400 37/45 200-350
YD120 120 7-15 65-90 37
ZL65-150 SJSL65 62.4 20-48 400-600 55/75 250-450
YD150 150 7-15 65-85 37/45
ZL75-180 SJSL75 71 20-44 400-600 75/90 400-650
YD180 180 7-15 65-90 45/55
ZL95-200 SJSL95 94 20-44 400-600 220/280 700-15000
YD200 200 7-15 65-85 75/90

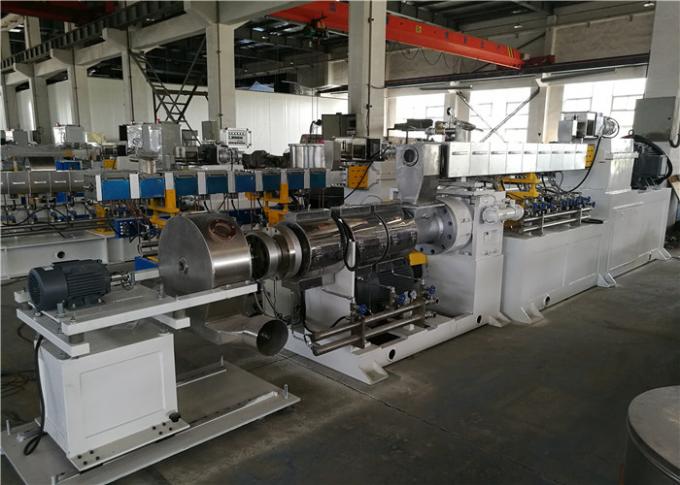

 Photo of machine

High Efficiency Two Stage Extruder Machine For PVC Cable 71mm/180mm Screw Diameter

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
