High Efficiency PE Pelletizing Machine , PET Extruder Machine One Year Warranty

Short Description:

Detailed Product Description Screw Design: Twi-single Screw Extruder Application: Carbon Black Master Batch Warranty: One Year Overseas Engineers: Available For Installation And Comissioning Screw Diameter: 71mm/71mm Motor: 132/55kw Capacity: 500-700kg/h Cutting Way: Air Cooling Die Face Carbon Black Masterbatch Manufacturing Machine Plastic Pelletizing Machine  Quick details  Power:132kw for twin screw exturder, 55kw for single screw extruder  Screw diameter:71mm for twin scre...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twi-single Screw Extruder Application: Carbon Black Master Batch
Warranty: One Year Overseas Engineers: Available For Installation And Comissioning
Screw Diameter: 71mm/71mm Motor: 132/55kw
Capacity: 500-700kg/h Cutting Way: Air Cooling Die Face

Carbon Black Masterbatch Manufacturing Machine Plastic Pelletizing Machine

 Quick details

 Power:132kw for twin screw exturder, 55kw for single screw extruder

 Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine

 L/D:48:1 & 9:1

 Output:500-700kg/h according to different material, formula and technology of process etc.

 Cutting way:water ring

 Warranty:one year

 Lead time:45 days after deposit

  Technical parameter of carbon black plastic granulating production line

  technical requirements:

  Dynamic data: low voltage power supply standard(DIN/IEC38): 380v-5+10%, 50Hz-/+2% phase/N/PE50Hz.

  control voltage standard (transformed): 220V AC( contactor, meter, electromagnetic valve ).

   Temperature: 10-40℃.Humidity: max.80%, no condensation.

   Total wattage:~300 KW.

  Water requirements: circulating water: The cooling recycling water in the barrel must be non-inoic soft water (distilled water).

  Water sources: 1. Creating a pool (4-6㎥) outside the workshop, using water pump to make recycling water.

                          2. Using tap water directly, but it’s wasteful.

  Weight :Extruder:~8T

                Auxiliary system:~2T

  World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

 Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller’s manufacturer, L/C payment are negotiable

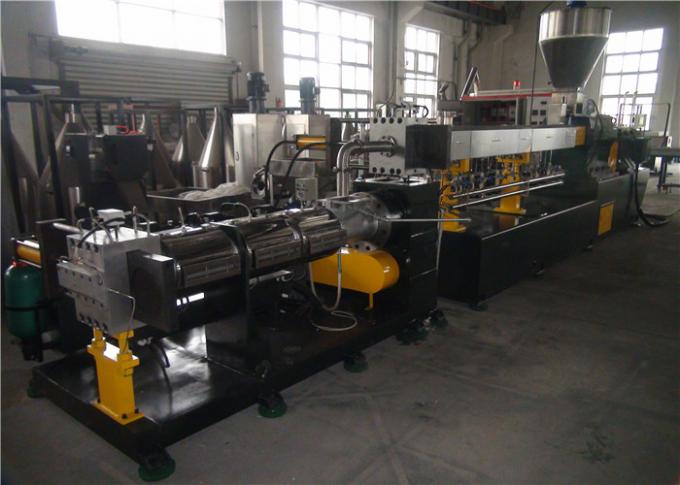

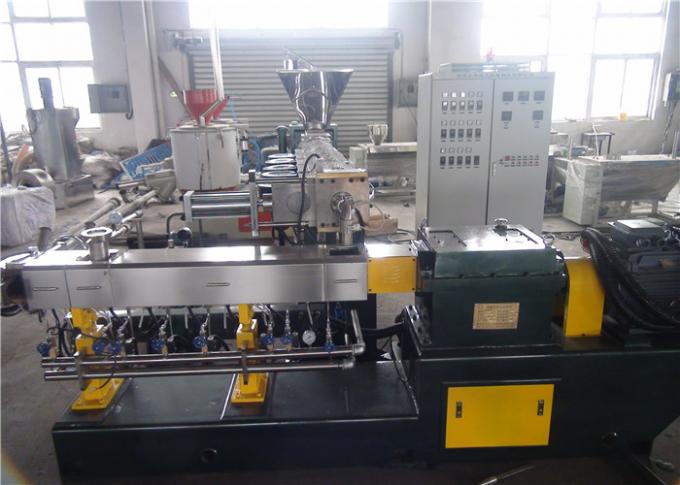

 Photo of two stage cable material plastic pelletizing machine

High Efficiency PE Pelletizing Machine , PET Extruder Machine One Year Warranty



High Efficiency PE Pelletizing Machine , PET Extruder Machine One Year Warranty

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Typical production capacity (kg/h)
ZL51-100 SJSL51 50.5 20-48 500-600 37/45 150-300
YD100 100 7-15 65-85 37
ZL60-120 SJSL60 59.5 20-44 400 37/45 200-350
YD120 120 7-15 65-90 37
ZL65-150 SJSL65 62.4 20-48 400-600 55/75 250-450
YD150 150 7-15 65-85 37/45
ZL75-180 SJSL75 71 20-44 400-600 75/90 400-650
YD180 180 7-15 65-90 45/55
ZL95-200 SJSL95 94 20-44 400-600 220/280 700-15000
YD200 200 7-15 65-85 75/90

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

 How to choose machine for plastic pellet?

1. Just tell us your rough formula?

2. Your expected output per hour of the mahcine
